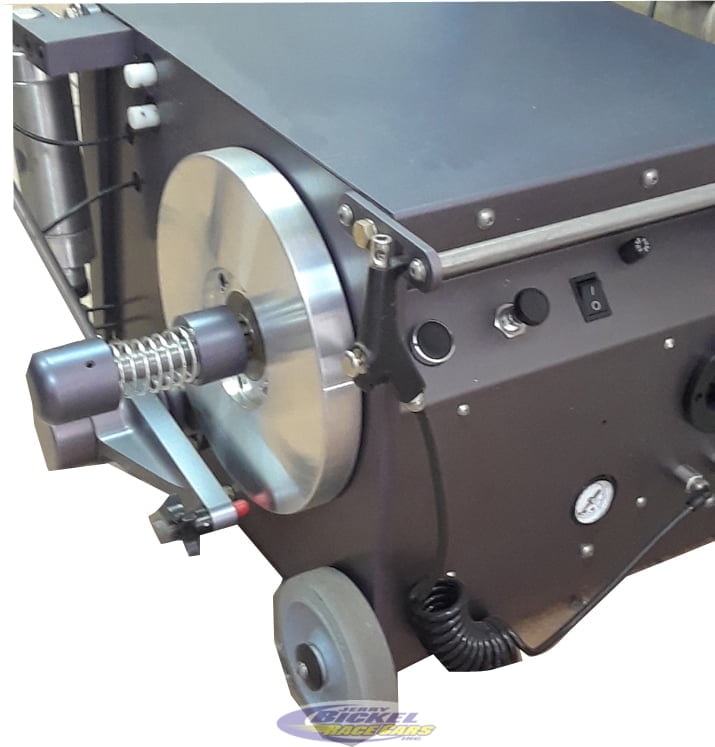

Clutch Machine JBRC4030

The shaft is supported with three bearings for less flex. Flip-up handle. Built in male outlet. CNC high quality dowel pined frame. Specify clutch size when ordering. Optional Heat Plate 375.00.

NOTE: Must be truck shipped (freight extra)

Clutch Machine can cut these size spline adapters:

1 3/16 x 18

1 3/8 x 10

1 3/4 x 10

Cuts 6 1/4 to 11 inch diameter discs

The cutting surface is held to a 0.002 tolerance accurate to +/- 0.0004

Available in 110 volt - 60 hz with American plug or International 220 volt - 50 hz International plug

Has wheels and fold down handle for portable use, comes with air blower and hose.

Compact assembly will fit under most benches.

Diamond cutter for surface repeatability.

Made in U.S.A.

Currently used by the best racers in The United States & Australia
